Bearing Brass: The Self-Lubricating Alloy for Improved Machinery Performance and Its Use in Bushing

The brass bushing, crucial to many mechanical systems, is renowned for its durability, corrosion resistance, and conductivity.

Bearing brass is a specialized alloy crafted for high-performance applications, celebrated for its durability and self-lubricating features. It is essential for industries relying on dependable machinery operations. This blog post explores the distinct properties of bearing brass, its maintenance and lubrication needs, and its interaction with manufacturing processes like milling, drilling, and grinding.

High strength brass bushings and high strength brass flanged bearings are known for their outstanding strength and durability. High tension brass bushings are often self-lubricating, reducing maintenance requirements and improving the performance of industrial machinery. High-strength brass flanges are favored for their superior wear resistance and self-lubricating properties for applications that require reliable and durable components.

High-tension brass bushing and high-strength bearing flange suitable for industrial and CNC machining applications. Whether you’re retrofitting current machines or integrating into new systems, our high-tension brass bushings and high-strength bearing flanges are integral to achieving precise and reliable operations. Trust in their robust construction to support your industrial machinery’s needs, delivering consistent performance under pressure.

Oil Free Bushings / Plain Bushings: Filter by Type (Straight, Shouldered, Flanged) and Material Specifications Comparison!

CAST BRONZE1
bronze lube bushings
What is Bearing Brass? Oil Free Bushings / Plain Bushings
Bearing brass, a special brass alloy, is mainly made of copper and zinc, with tin and lead added for enhanced wear resistance and anti-friction properties. This makes it ideal for bearings, gears, and other high-friction, high-wear components.
CAST BRONZE2
centrifugal cast bronze self-lubricating bushing bearings
Special Brass: The Composition and Properties
Bearing brass typically consists of about 60% copper, 39% zinc, and 1% tin. The tin improves corrosion resistance and strength, while small amounts of lead enhance machinability and reduce wear. This composition makes bearing brass durable and able to withstand significant mechanical stress without losing performance.
CAST BRONZE4
bronze graphite bushings, centrifugal cast bronze self-lubricating bearings
Self-Lubricating Brass Features
Bearing brass features self-lubrication due to microscopic lead distribution within the brass. Under stress, lead particles form a lubricating film, minimizing the need for external lubrication. This property is vital for applications requiring minimal maintenance or operational cleanliness.

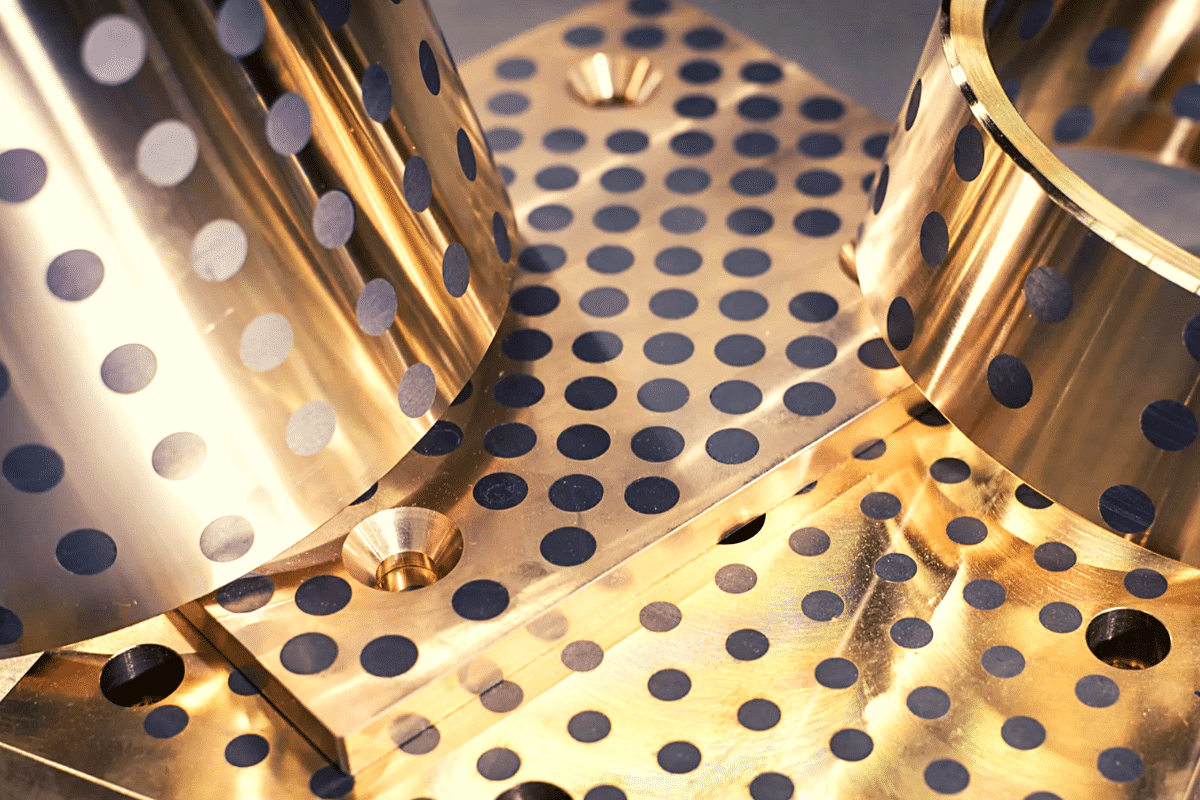

CAST BRONZE3
centrifugal cast bronze self-lubricating bearings
Maintenance and Lubrication, Brass Bearing
Regular maintenance of self-lubricating brass bearings is crucial for durability and performance. Perform routine inspections for wear and periodic cleaning. In high-load or high-temperature applications, additional lubrication may be required to enhance brass performance and prevent failure.

Bearing brass, Self lubricating Brass Bushing, Plain bearing bushes with flange / brass / solid lubricant

Bearing brass is renowned for its strength, self-lubricating properties, and machinability, making it ideal for high-durability, low-maintenance components. It is essential in automotive, aerospace, and industrial machinery for enhancing system performance and reliability. Proper maintenance and machining knowledge ensure optimal performance of bearing brass components throughout their lifespan. Made from an alloy of copper and zinc, with variations for specific properties, these bushes meet diverse mechanical needs. We are ready to service your die component requirements. Contact us now for custom brass bearing components!

ASTM Bearing Brass, Bushing Bearing
Discover a diverse range of industrial and scientific products like Sleeve Bearings, Quick Disconnect Bushings, and Flanged Sleeve Bearings.
EN 1982 Oil-Lubricated Bronze Solid Brass Bushing
Cast Brass Self-Lubricating Sleeve Bearings
Plain bearing bushes with flange / brass / solid lubricant

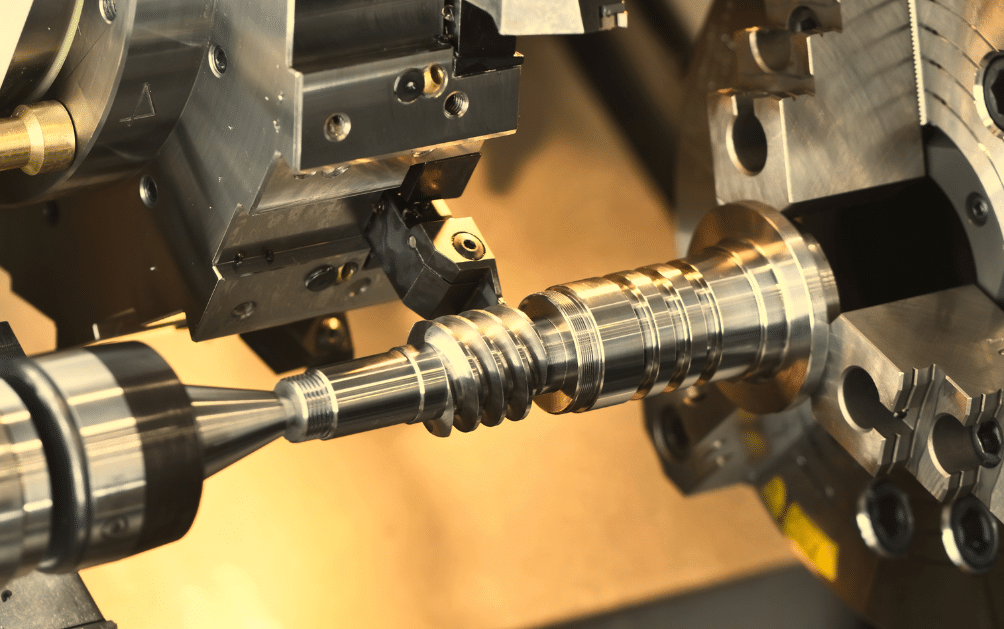

Machining Bearing Brass: Milling, Drilling, Grinding; Bronze Bushing and Bearing Material – Sleeve & Flange and More.

Machining bearing brass is notably different from working with other metals due to its softness and ductility. Here’s how bearing brass interacts with different machining processes:

Milling: When milling bearing brass, sharp, polished tools are essential to prevent the metal from sticking to the cutter. A higher cutting speed and a non-water soluble cutting fluid can result in smoother finishes and precise cuts.

Drilling: Similar to milling, sharp drills and appropriate lubrication (preferably oil-based) help maintain accuracy and surface integrity during the drilling process. Gradual feed rates and regular drill bit withdrawal are effective in removing chips and preventing clogging.

Grinding: Grinding bearing brass can be challenging due to its soft nature. Using a grinding wheel with a fine grit and low feed rates helps minimize heat buildup and prevents the metal from deforming.

Oil Free Bushings / Plain Bushings, Tolerance and Fit Considerations for Cast Bronze Bushings

The brass bushings are engineered for optimal performance, providing strength, as well as wear and corrosion resistance. Bronze bushings are vital in various mechanical assemblies, offering durability and efficiency when installed within the correct tolerance ranges. Installing a bronze bushing narrows its bore from an F7 to an H7 tolerance range, influenced by several factors:

– H7 Tolerance for Housing Bore: The housing bore must meet H7 tolerance standards to ensure a precise fit, avoiding overly tight or loose fitting.

– Adequate Housing Wall Thickness: The housing needs sufficient wall thickness to support the bushing without deforming under stress, maintaining the assembly’s integrity.

– Optimal Socket Wall Strength: Ensuring robust socket wall strength prevents structural weaknesses, enhancing the bushing’s durability and longevity.

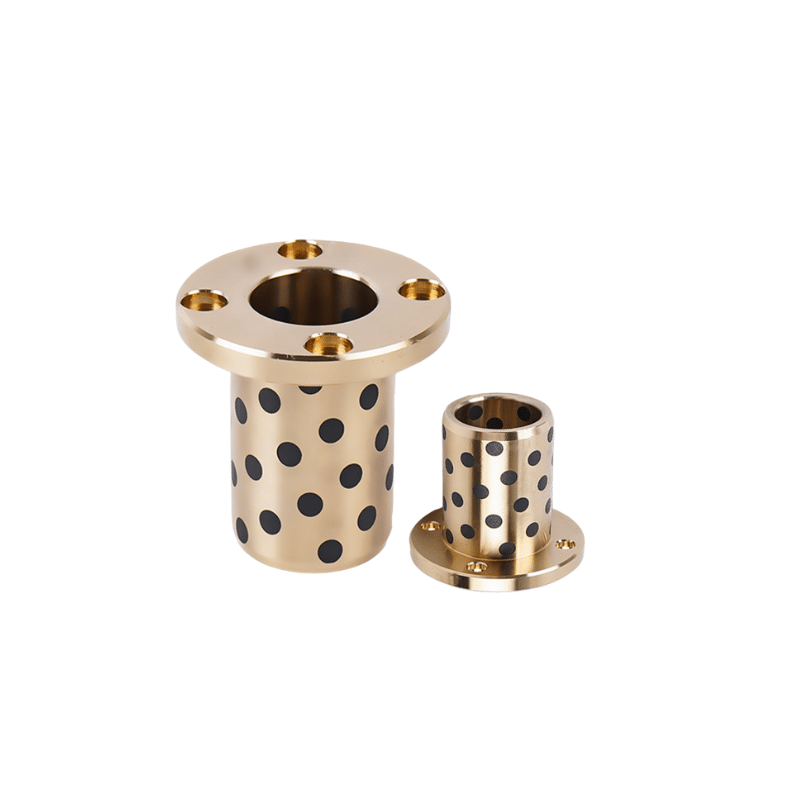

Plain bearing bushes with flange / brass / solid lubricant
High-tension brass bushes and High strength brass bearing

Recommended tolerance fields vary by application based on counterpart requirements.

Flanged brass plain bearing bushes with solid lubricant provide excellent performance under high load and low-speed conditions. Shaft

  • d8: For high-load applications
  • e7: For low-load applications
  • f7: For high accuracy
  • g6: For high accuracy during intermittent operation

h6 Tolerance: Ideal for applications demanding top precision, like cutting tools and mold construction, h6 tolerance ensures a tight fit, reducing play and increasing accuracy.

f7 and e7 Tolerances: These are suggested for high accuracy in general engineering, offering a balance between a tight fit and easy assembly, suitable for diverse tasks.

Applying these tolerances is vital for optimizing the performance and reliability of bronze bushings in mechanical assemblies. By selecting the right tolerance fields and ensuring the housing can accommodate them, engineers can greatly enhance the effectiveness of their designs.

High-tension brass bushes and High strength brass bearing, The Future of Bearing Brass in Engineering and Design

About us

Custom Parts Services and Prototyping!

Special Bronze Alloys And Aluminium Bronze Bearing, Search Our Material Alloy

Bearing brass Plates and Angle Strips: Precision and Clearance Specifications

Bearing brass plates and angle strips are customized for specific applications and accuracy, with thicknesses usually between 0.02 mm and 0.15 mm. These components are engineered for precise clearances, enabling smooth mechanical operation and alignment.

Bronze guide slides typically maintain a 0.05 mm lateral clearance for free movement without excessive play, ensuring accurate and stable performance. A 0.1 mm vertical clearance is also common to accommodate vertical movements or potential thermal expansion.

These specifications are vital for the optimal performance of bronze components in engineering and manufacturing, allowing precise fitting and operational efficiency.

Maintenance Free, Bearing Bronze Components, brass Bearings

In hac habitasse platea dictumst nam quam nunc, blandit vel, luctus pulvinar.

QAL9-4 brass bushings
Special Bronze Alloys, Manufacture of Bronze Parts, Brass Bearing

Composition and Properties of Tin Bronzes

Tin Content: Tin is the key component in tin bronzes, typically comprising 8-12.5% of the alloy. Its presence notably enhances the strength and hardness of the alloy compared to pure copper.

Copper Base: Copper constitutes approximately 87% of the alloy, providing excellent conductivity and corrosion resistance, which are advantageous for numerous applications.

Additional Elements:

  • Lead: Integrated to enhance anti-friction properties, making the alloy particularly suitable for bearings and other applications where friction reduction is crucial.
  • Zinc: Increases the strength and wear resistance of the alloy.
  • Phosphorus: Boosts machinability and can also strengthen the alloy.

Applications of Tin Bronzes in Bearings

Tin bronzes are highly valued in bearing applications due to their robust combination of strength, wear resistance, and favorable frictional properties. Specific applications include:

  • Plain Bearings: Often utilized in devices that mitigate friction between moving parts.
  • Bushing and Sleeve Bearings: Employed where a smooth surface is necessary to minimize friction and wear.
  • Gear Components: The strength and durability of tin bronzes are ideal for gears subjected to heavy loads, ensuring reliable operation over extended periods.
  • Pump Bodies and Structural Parts: Useful in components exposed to high loads and corrosive environments.

Standards and Specifications

Tin bronzes are manufactured in accordance with various international standards, such as the EN 1982 standard. Examples of tin bronze alloys conforming to this standard include:

  • CuSn5Zn5Pb5 (CC491K): Known for its high durability and tensile strength, this alloy is ideal for heavily loaded machine parts and high-speed machine friction components.
  • EN 1982 CC491K, CuSn5ZnPb5-C: Also referred to as red metal, this alloy is favored for applications requiring excellent bearing properties and wear resistance.
  • CuAl10Fe5Ni5 (CC333G): Although not a traditional tin bronze, this alloy is recognized under the EN 1982 standard and is suitable for parts operating under extreme load and tension, thanks to its superior corrosion resistance.

In conclusion, tin bronzes offer a versatile range of properties making them excellent for bearing applications. Their well-defined composition and compliance with international standards like EN 1982 enable them to meet the diverse demands of various industrial uses where high strength, wear resistance, and effective friction management are essential.

Composition of Leaded Bronzes

Leaded bronzes are primarily composed of copper, tin, and lead. Typically, the lead content ranges from 4 to 10%, enhancing the alloy’s lubricity under dry or boundary lubrication conditions. Tin, which usually constitutes 8 to 12% of the alloy, bolsters the strength and hardness of the bronze.

Properties of Leaded Bronzes

  • Self-Lubrication: Lead imparts a smooth, low-friction surface to the alloy, enabling operation with minimal external lubrication.
  • Improved Wear Resistance: These bronzes are noted for their robust wear resistance, essential for the durability of bearings and other mechanical components.
  • High Strength and Fatigue Resistance: The synergy of copper and tin endows the alloy with considerable strength and fatigue resistance, suitable for enduring heavy loads and repetitive stress cycles.
  • Corrosion Resistance: Leaded bronzes also demonstrate commendable resistance to corrosion, making them apt for harsh environmental conditions.

Applications of Leaded Bronze Bearings

  • Heavy Machinery Bearings: The self-lubricating properties of leaded bronzes make them ideal for bearings in heavy machinery such as industrial pumps, compressors, and gears.
  • Automotive and Transportation: These bearings are utilized in various automotive applications, including wheel bearings, valve lifters, and suspension components.
  • Marine and Offshore Equipment: Their corrosion resistance makes leaded bronzes suitable for marine and offshore applications, where they face exposure to saltwater and other corrosive elements.
  • Industrial Machinery: Leaded bronze bearings find extensive use in industrial machinery across sectors such as textiles, printing, and food processing, where consistent performance is crucial.

Environmental Considerations and Alternatives

The environmental and health impacts of lead have led to scrutiny over its use in bronze alloys. With lead recognized as a toxic substance, efforts are increasing to phase it out or restrict its use. This has spurred interest in developing alternatives such as bismuth bronze, which offers similar self-lubricating properties without lead. Additionally, alloys based on aluminum and zinc are being explored as potential substitutes for leaded bronzes.

Composition and Properties of CuSn7Zn4Pb7

Composition:

  • Copper (Cu): As the foundational metal, copper comprises the majority of CuSn7Zn4Pb7, offering excellent conductivity and corrosion resistance which underpins the alloy’s performance.
  • Tin (Sn): Tin, making up about 7% of the alloy, enhances its strength and hardness, which are critical for the alloy’s durability and resistance to wear.
  • Zinc (Zn): The inclusion of zinc not only improves the alloy’s casting characteristics but also augments its strength.
  • Lead (Pb): At approximately 4%, lead boosts the alloy’s machinability and imparts superior bearing qualities, such as self-lubrication under certain operational conditions.

Performance Characteristics:

  • High Strength and Hardness: The synergy of copper, tin, and lead provides substantial strength and hardness, crucial for enduring heavy loads in bearing applications.
  • Wear Resistance: CuSn7Zn4Pb7 is noted for its exceptional wear resistance, ideal for plain bearings subjected to consistent friction and movement.
  • Self-Lubricating Properties: Lead content facilitates self-lubrication, reducing reliance on external lubricants and enhancing performance in dry or boundary lubrication scenarios.
  • Corrosion Resistance: This alloy boasts significant resistance to various forms of corrosion, making it suitable for harsh environments.

Applications in Heavy-Duty Environments:

  • Industrial Machinery: Due to its robustness and wear resistance, the alloy excels in heavy machinery such as pumps, compressors, and gears, ensuring dependable operation.
  • Automotive Industry: Utilized in components like wheel bearings and transmission parts, CuSn7Zn4Pb7 supports high durability and load-bearing demands.
  • Marine and Offshore Equipment: Its corrosion resistance proves invaluable in marine settings, safeguarding equipment against the rigors of saltwater and extreme conditions.
  • Renewable Energy: The alloy’s properties make it apt for renewable energy technologies, such as wind turbines and solar panels, where long-term reliability is essential.

Conclusion: CuSn7Zn4Pb7, a leaded tin bronze, is excellently suited for plain bearings in demanding applications. Its blend of strength, wear resistance, self-lubrication, and corrosion resistance renders it an optimal material for environments where high performance and longevity are critical.

While leaded bronzes are effective bearing materials known for their self-lubrication, wear resistance, and strength, the industry is actively pursuing alternative materials. These alternatives aim to replicate the performance benefits of leaded bronzes without the environmental and health risks associated with lead.

Composition of Aluminum Bronzes

Aluminum bronzes are distinguished by their high aluminum content, which typically ranges from 6% to 12%. The base of the alloy is predominantly copper, which enhances the overall properties of the alloy. To improve performance, small quantities of other elements such as iron, nickel, or manganese may be included.

Properties of Aluminum Bronzes

  • High Strength and Hardness: Aluminum bronzes are noted for their robust strength and hardness, making them ideal for bearing materials that need to endure heavy loads and abrasive conditions.
  • Corrosion Resistance: These alloys excel in corrosion resistance, particularly in marine environments where they are exposed to saltwater and other corrosive agents.
  • Wear Resistance: The inherent hardness and composition of aluminum bronzes enhance their wear resistance, essential for bearings and components subjected to friction.
  • Machinability: Aluminum bronzes are often highly machinable, facilitating the fabrication of complex parts with precision.
  • Thermal Conductivity: These alloys also possess good thermal conductivity, advantageous in applications requiring effective heat dissipation.

Applications of Aluminum Bronze Bearings

  • Marine Equipment: Their corrosion resistance makes aluminum bronze bearings suitable for marine use, such as in propellers, shafts, and other subsea components.
  • Industrial Machinery: Given their strength and wear resistance, these bronzes are preferred in industrial machinery for gears, bushings, and bearings under heavy loads.
  • Aerospace Components: Aluminum bronzes are valued in aerospace for components like bushings and bearings, where high strength and fatigue resistance are crucial.
  • Automotive Industry: These bearings are employed in various automotive applications, including wheel bearings, benefiting from their self-lubricating properties and resistance to wear.
  • Electronics and Electrical Equipment: The thermal conductivity of aluminum bronzes is beneficial in the electronics and electrical sectors, aiding in heat dissipation for optimal functioning.

Popular Aluminum Bronze Alloys

  • C954 Aluminum Bronze: Known for its excellent tensile and yield strength, ductility, weldability, and machinability, C954 is widely used where strength and corrosion resistance are required.
  • C95500 Aluminum Bronze: This alloy offers properties similar to C954 but with a slightly higher aluminum content, enhancing its corrosion resistance and strength.
  • C95200 Aluminum Bronze: Renowned for its superior bearing properties, C95200 is frequently chosen for applications demanding high load capacity and wear resistance.

In summary, aluminum bronzes are a versatile class of bearing bronzes that excel in strength, corrosion resistance, and wear resistance, making them suitable for a broad spectrum of applications, from marine and industrial machinery to aerospace and automotive industries. The reliability and performance of these alloys in demanding conditions contribute to their widespread popularity.

High Tensile Brasses: Composition and Applications

Overview High Tensile Brasses, also known as Manganese Bronze or High Strength Brass, are specialized copper alloys designed for enhanced mechanical properties, especially tensile strength. These alloys are vital in applications requiring high strength and durability, such as in the manufacturing of bearing components.

Composition The primary components of High Tensile Brasses are copper and zinc. Manganese is the critical alloying element that sets these brasses apart from standard brass alloys, as it significantly boosts the alloy’s strength. Additional elements like aluminum, iron, nickel, and silicon may be incorporated to further improve various characteristics of the alloy.

Properties

  • High Tensile Strength: The inclusion of manganese and other elements markedly increases these brasses’ tensile strength beyond that of standard brass alloys.
  • Good Fatigue Resistance: These alloys exhibit enhanced fatigue resistance, making them suitable for applications involving cyclic loading.
  • Corrosion Resistance: High Tensile Brasses offer robust corrosion resistance, particularly in marine and other corrosive environments.
  • Wear Resistance: The inherent strength and hardness also enhance their wear resistance, crucial in bearing applications.
  • Machinability: Despite their hardness, High Tensile Brasses are machinable, allowing for the precise fabrication of complex parts.

Applications

  • Bearings and Bushings: Ideal for bearings and bushings, these alloys can handle heavy loads and demanding operational conditions due to their strength and wear resistance.
  • Marine Components: Their corrosion resistance makes them suitable for marine applications, including propeller shafts and bearings exposed to saltwater.
  • Heavy Machinery: Utilized in construction equipment, agricultural machinery, and industrial pumps, where components face high loads and stress.
  • Automotive Industry: Found in various automotive components such as valve stems, wear rings, and bearings designed for heavy loads.
  • Structural Components: Employed in structural components that demand high strength and fatigue resistance, such as bridges and infrastructure projects.

Popular High Tensile Brass Alloys

  • CZ114/CW721R: Known for its versatility, this high-strength brass alloy is both hot workable and machinable, often used for its excellent mechanical properties.
  • C95200: A specific high-tensile brass that balances strength, corrosion resistance, and machinability.
  • ToughMet Spinodal: A high-entropy alloy that includes high tensile brasses and bronzes, providing unique property combinations for specialized applications.

Summary High Tensile Brasses are essential copper alloys that deliver superior mechanical properties, particularly in tensile strength. Their robustness, combined with excellent corrosion and wear resistance, makes them highly sought after for a wide array of industrial and engineering applications.

Lubrication bearing Bronze, Flanged Sleeve Bearings- Bronze Bearings – Brass Bushings
