Brass Wrapped Bushing Design, CuZn31Si Copper Wrapped
Bushing
Brass, Bronze & Copper Bushings Bearing Manufacturers
Brass Wrapped Bushing, With experience in designing brass bushings using CuZn31Si material, we offer a variety of bronze bearing bushings in different styles and sizes, all in stock and ready to ship. We are a reliable supplier of solid bronze bushings.
Bronze bushings are solid bearings made from bronze or cast bronze alloys. They are commonly used in machinery, particularly vehicles, where a long straight metal piece with a cam connects various parts. Bronze is a versatile material for bushings, available in numerous alloys and compositions.
Projects
Make your space useful and different
Experience of over 10 years of successful projects on creating unique and modern interior designs all over the world.
Learn More
Brass Wrapped Bushing Bearings
Choose from our selection of metric Brass Wrapped Bushing bushings, including sleeve bearings, flanged size.
Copper Wrapped Bushing 80~110 HB: We guarantee the quality of our Bronze Brass Bushing material, CuZn31Si(H68). As recognized brass bushing manufacturers, our product is crafted from high-quality low-carbon steel, with a surface featuring rolled diamond or round oil pockets. These pockets contain a special embedded lubricant, providing excellent lubrication and corrosion resistance, even in low or no oil conditions. This bushing is ideal for high-temperature applications, aqueous solutions, and situations where oil cannot be added.

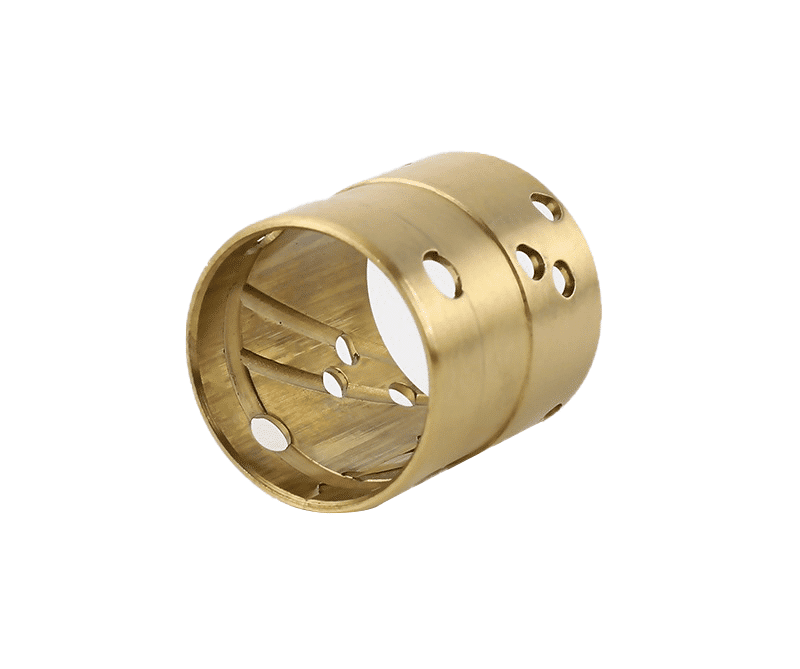

CuZn31Si Copper Wrapped
Bushing
High-quality Brass Wrapped Bushing that meet your requirements.
Brass Wrapped Bushing
Brass Wrapped Bushing Suppliers in China.
Bronze Bushing Design
Design of CuZn31Si Copper-Wrapped Bushing Arrangements.
Explore More Brass bearings & bushings
Brass-Wrapped Bushings in Metric and Inch Sizes – Supplier of Brass Bushed Bearings, Brass Wrapped Bushing

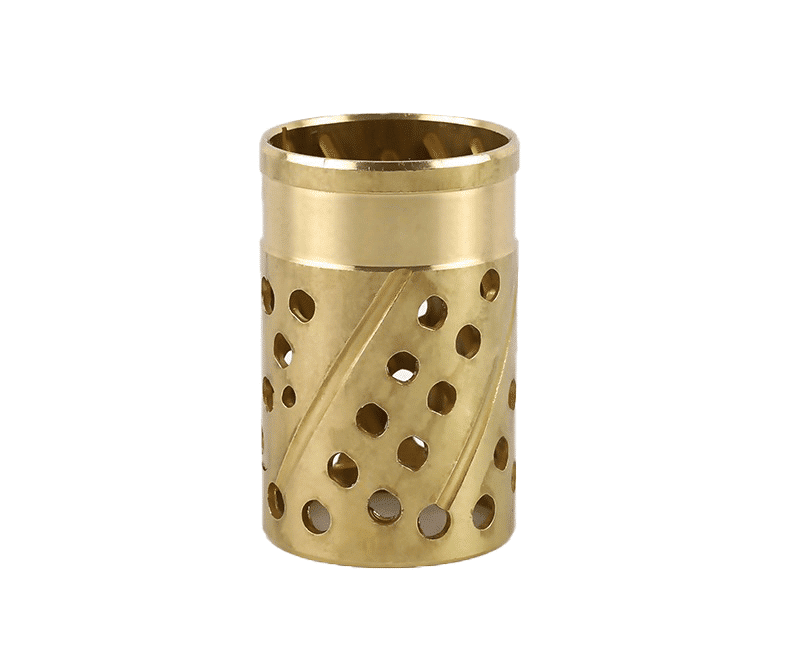

The wrapped brass bushing, made of CuZn31Si(H68), features a diamond-punched surface for oil retention. It offers excellent resistance to fatigue, erosion, and abrasion, along with strong load capacity. These brass bushings are commonly used in heavy-load, low-velocity applications, such as in agricultural, construction, and engineering machinery.
Choose high-quality bronze bushings from certified Chinese manufacturers with a low minimum order quantity. Enjoy fast delivery and savings on your brass bearing budget, including precision-turned parts and self-lubricating cast brass bushings from a reliable and safe supplier.
Brass Wrapped Bushing for Industrial Applications: Custom Bronze Bearings Designed for Your Needs.
The Use of Parameters
| Model | FB090 | FB091 | FB092 | FB094 | FB09G |
|---|---|---|---|---|---|
| Type | Bronze Wrapped Bushing | Copper Wrapped Bushing | Bronze Wrapped Bushing with Seals | Bronze Wrapped Bushing | Bronze + Graphite Wrapped Bushing |
| Parameters | |||||
| Density | 8.9 g/cm³ | 8.4 g/cm³ | 8.9 g/cm³ | 8.9 g/cm³ | 8.3 g/cm³ |
| Pressure Resistance Strength | 470 N/mm² | 440 N/mm² | 470 N/mm² | 470 N/mm² | 470 N/mm² |
| Coefficient of Heat Conduction | 60 W/m·K | 71 W/m·K | 60 W/m·K | 60 W/m·K | 58 W/m·K |
| Linear Expansion Coefficient | 18.5 x 10⁻⁶/K | 19.2 x 10⁻⁶/K | 18.5 x 10⁻⁶/K | 18.5 x 10⁻⁶/K | 18.5 x 10⁻⁶/K |
| Hardness | 90–120 HB | 80–110 HB | 90–120 HB | 90–120 HB | 90–120 HB |
| Elongation | 55% | 30% | 55% | 55% | 55% |
| Alloy Material | CuSn8P | CuZn31Si | CuSn8P | CuSn8P | CuSn8P |
| Other Material | CuSn6.5P | CuSn6.5P | CuSn6.5P | CuSn6.5P | CuSn6.5P |
Brass Wrapped Bushing Application Case
Brass Wrapped Bushing Products are primarily utilized in lifting machinery, construction machinery, automobiles, tractors, mobile machinery, machine tools, and mining equipment.
